Horizontal toggle clamp with blue handle

with open clamping arm and angle base.
Galvanized and passivated. Rivets made of stainless steel, which, for sizes 2 and 3, run in hardened bushings. Bearings are pre-lubricated.
Ergonomic, oil-resistant handle with large grip surface and soft components. Lock washer for the thrust bolt at the end of the clamping arm.
Complete with tempered, galvanized clamping screw no. 6890

Order
no.
Size F1
[kN]
F2
[kN]
Clamping screw Weight
[g]
557682 1 0.8 1.1 M5x30 170
557683 2 1.0 1.2 M6x35 245
557684 3 1.8 2.5 M8x45 390
557685 4 2.0 3.0 M8x65 730

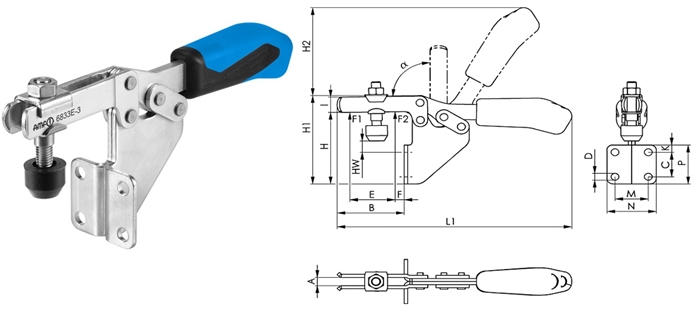

Dimensions:
Order
no.
Size A B C D E F H H1 H2 HW min. HW max. I K L1 M N P α
557682 1 5.0 32 13.5 5.2 18.5 4.0 57 68.0 49 14 20.0 10.0 8 120 19.0 31.0 28 90°
557683 2 6.2 52 20.0 5.6 32.0 10.5 73 94.0 68 22 29.5 13.2 6 162 25.5 37.0 32 90°
557684 3 8.0 59 24.0 6.8 37.0 6.5 70 86.5 86 5 16.0 15.0 7 206 28.5 42.5 38 90°
557685 4 10.0 93 32.0 8.5 63.0 15.0 102 133.0 120 11 40.0 20.0 40 282 32.0 52.0 82 90°
